AVK TAPPING SADDLE, PN 16
For ductile iron pipes, metric thread
Contact
AVK Saudi Valves Manufacturing Co. Ltd.
Street 45, Industrial Area, Phase 4 Jeddah 21443, Saudi Arabia Email: sales_sv@avksvmc.com Working Hours: Sunday to Thursday, 8:00 AM – 5:00 PM
Universal tapping saddle for service ball valve for water to max. 70° C
AVK tapping saddles are easy to mount, maintenance free and designed for long life. A large profiled rubber gasket of drinking water approved EPDM ensures a drop tight seal against a rough pipe surface. The depth of the BSP thread is kept to a minimum to ensure that no raw threads are exposed to the medium once the male thread fitting is mounted. The nuts are located in a recess to prevent them from rotating when tightening the bolts.
| Variant 10/10-001 | |
|---|---|
| Material: | Ductile iron |
| DN: | DN125 - DN225 |
Features
- Saddle of ductile iron with epoxy coating according to DIN 30677-2 and AVK guidelines.
- Short BSP thread with no raw threads exposed to the medium.
- Main gasket of drinking water approved EPDM rubber.
- Bolts of stainless steel A2.
- Nuts of acid-resistant stainless steel A4 with antifriction coated surface, located in a recess in the lower part.
- SBR rubber lining covers the internal surface to avoid direct contact between the ductile iron saddle and the pipe surface.
- The bolt holes are fully epoxy coated to protect against corrosion.
Downloads
Reference nos. and dimensions:

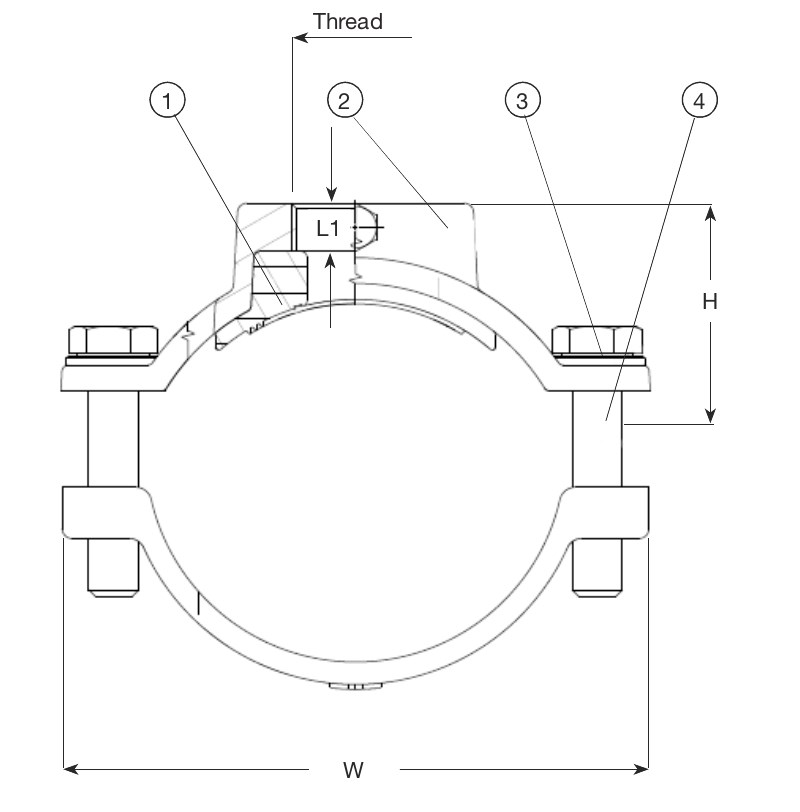

| AVK ref. no. | DN/DN |
H mm |
W mm |
L1 mm |
Theoretical weight/kg |
Notes |
|---|---|---|---|---|---|---|
| 10-128-10-5106 | 106 - 128 | 94 | 182 | 15 | 1.8 | M40 x 3 thread |
| 10-128-10-6106 | 106 - 128 | 94 | 182 | 15 | 1.8 | M55 x 3 thread |
| 10-234-10-5106 | 216 - 234 | 147 | 296 | 15 | 2.6 | M40 x 3 thread |
| 10-234-10-6106 | 216 - 234 | 147 | 296 | 15 | 2.6 | M55 x 3 thread |
Components

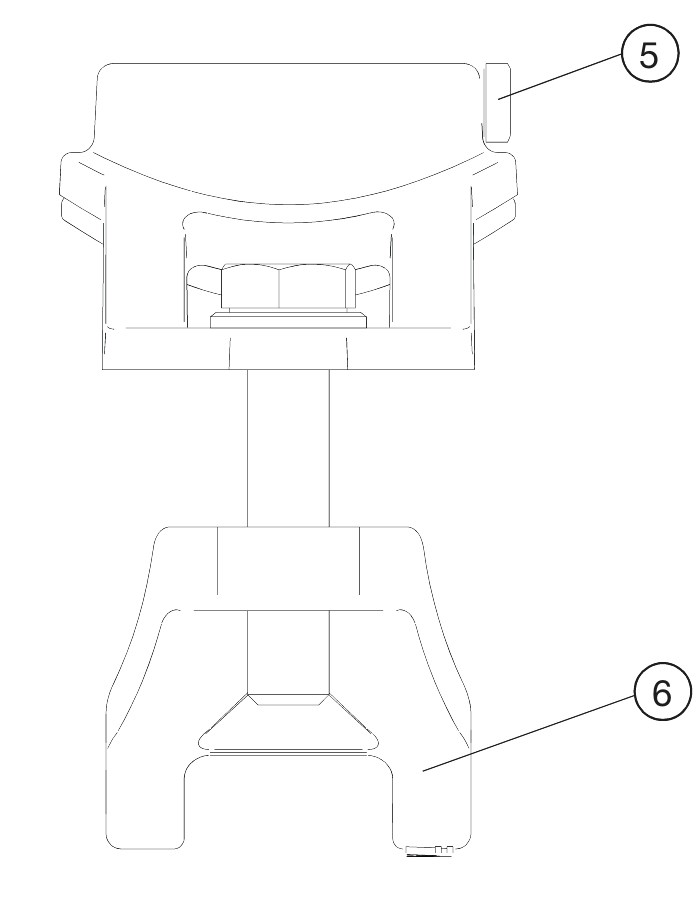

| 1. | Gasket | EPDM rubber |
| 2. | Upper part | Ductile iron GJS-400-15 (GGG-40) |
| 3. | Washer | Stainless steel A2 |
| 4. | Bolt | Stainless steel A2 |
| 5. | Insert bolt | Stainless steel A2 |
| 6. | Lower part | Ductile iron GJS-400-15 (GGG-40) |
